034-1030

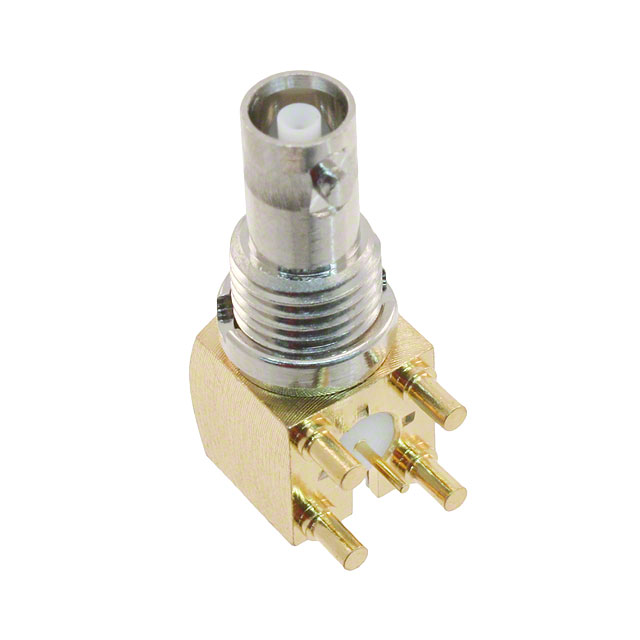

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 034-1030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 034-1030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 034-1030 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HDBNC JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.731 | $2.616 | $2.389 | $2.275 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.161 | $1.934 | $1.82 | $1.593 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 034-1030 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN HDBNC JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19848 pcs | Data sheet | 034-1030 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 34-1030 341030 ARF1750 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 Nut |
| Impedance | 75 Ohm | Housing Color | Gold, Silver |
| Frequency - Max | 4.5GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, HD Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC, HD |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold; Nickel |
