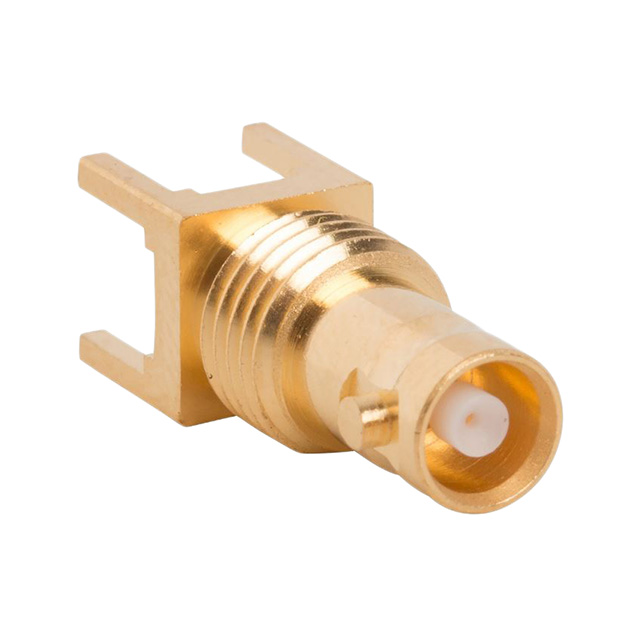

034-1028H-12G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 034-1028H-12G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 034-1028H-12G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 034-1028H-12G |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HD-BNC JACK 12G 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.927 | $3.57 | $3.481 | $3.213 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.035 | $2.767 | $2.588 | $2.374 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 034-1028H-12G | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN HD-BNC JACK 12G 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13406 pcs | Data sheet | 034-1028H-12G Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | ARF3113 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 Nut |
| Impedance | 75 Ohm | Housing Color | Gold |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, HD Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC, HD |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
