031-6509

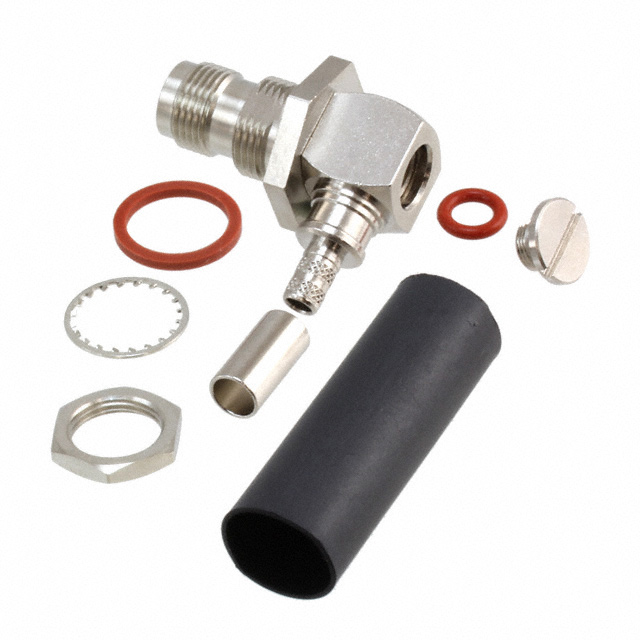

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-6509 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-6509 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-6509 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN TNC JACK R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $9.452 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-6509 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC JACK R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3207 pcs | Data sheet | 031-6509 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | ARC |
| Packaging | Bulk | Other Names | 31-6509 316509 ARF2246 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | Belden 7807A, LMR-200 |
| Body Material | Brass | Body Finish | Nickel |
