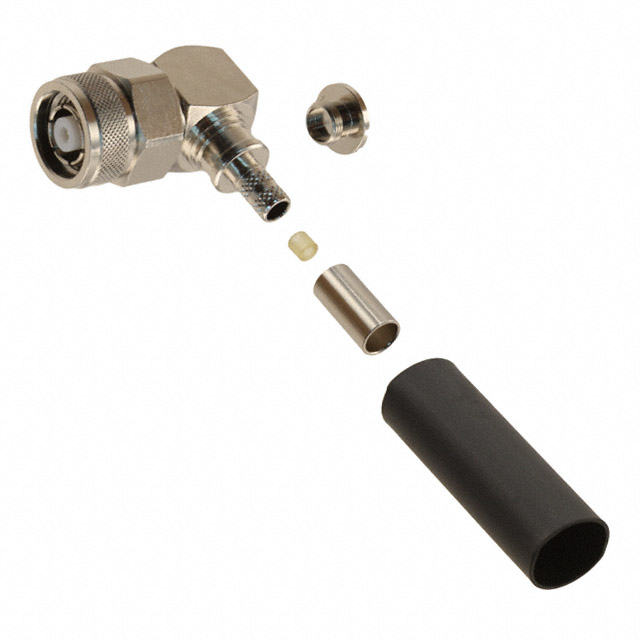

031-6504
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-6504 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-6504 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-6504 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN RPTNC PLUG R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $8.343 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-6504 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN RPTNC PLUG R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4151 pcs | Data sheet | 031-6504 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | ARC |
| Packaging | Bulk | Other Names | 31-6504 316504 ARF1928 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | 5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Gasket, 1 Heat Shrink | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) | Detailed Description | RP-TNC Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Female Socket |
| Connector Style | RP-TNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | Belden 7807A, LMR-200 |
| Body Material | Brass | Body Finish | Nickel |
