MDB-E09SA-700

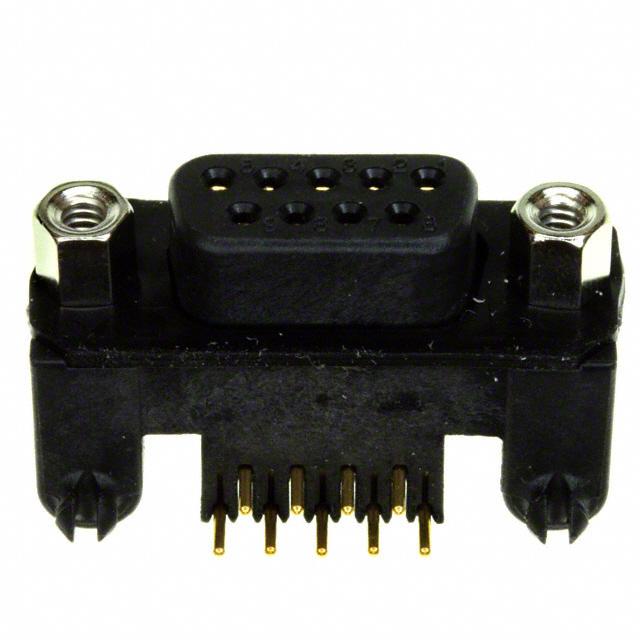

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDB-E09SA-700 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDB-E09SA-700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDB-E09SA-700 |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $7.665 | $7.118 | $6.388 | $6.206 | ||
| 120 pcs | 300 pcs | 540 pcs | |||
| $5.476 | $5.111 | $5.001 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDB-E09SA-700 | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7461 pcs | Data sheet | Harsh Environment Connector CatalogMDB-E09SA-700 DrawingMDB Product Spec |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Zinc, Nickel Plated |
| Series | MDB | Packaging | Tray |
| Other Names | MDBE09SA700 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Thermoplastic | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
