MDB-E09PE760

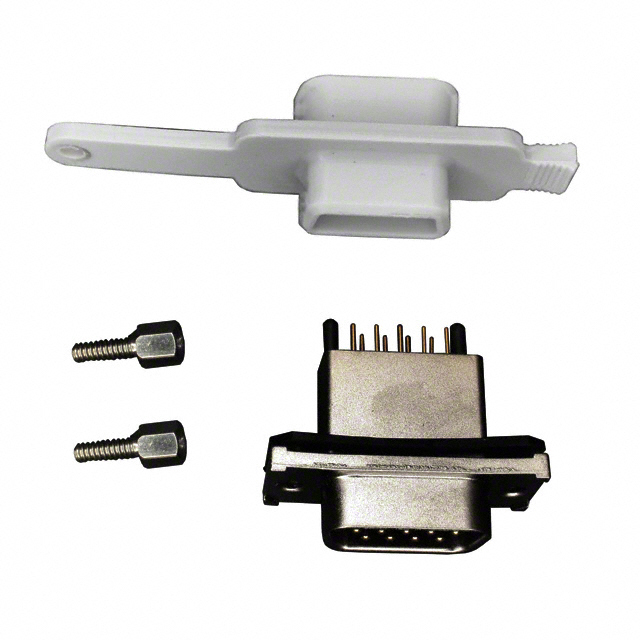

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDB-E09PE760 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDB-E09PE760 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDB-E09PE760 |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | CONN DSUB PLUG 9POS PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 48 pcs | 96 pcs | |
|---|---|---|---|---|---|
| $5.326 | $4.841 | $4.72 | $4.357 | ||
| 144 pcs | 288 pcs | 528 pcs | 1008 pcs | ||
| $4.115 | $3.752 | $3.51 | $3.22 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDB-E09PE760 | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN DSUB PLUG 9POS PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11338 pcs | Data sheet | Harsh Environment Connector CatalogMDBE09PE76x DrawingMDB Product Spec |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Zinc, Nickel Plated |
| Series | MDB | Packaging | Tray |
| Other Names | MDB-E09PA-760 MDB-E09PA-760-ND MDBE09PA760 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polyester | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Board Guide, Dust Cap | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
