D3W3P36A6GL08LF

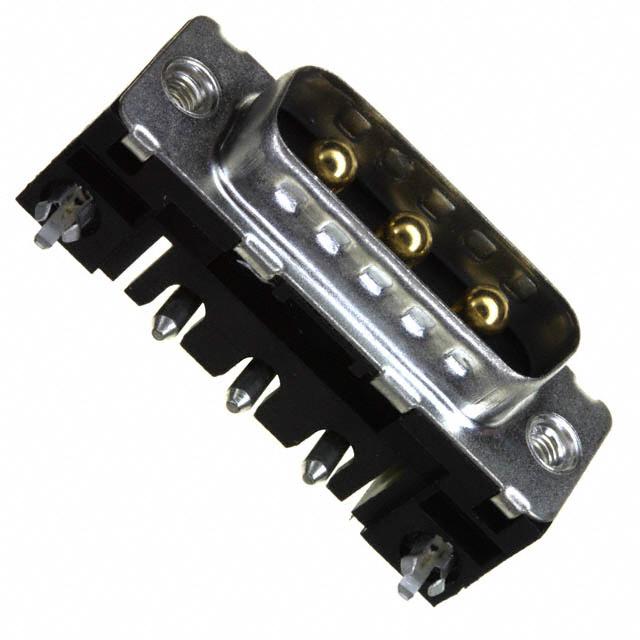

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3W3P36A6GL08LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D3W3P36A6GL08LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D3W3P36A6GL08LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN D-SUB PLUG 3POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.539 | $1.478 | $1.355 | $1.294 | $1.232 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.078 | $1.047 | $0.893 | $0.832 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D3W3P36A6GL08LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB PLUG 3POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39380 pcs | Data sheet | C01-8646-0715 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 | Shell Material, Finish | Steel, Tin Plated |
| Series | Delta D | Packaging | Tray |
| Other Names | 609-2824 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 3 (Power) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (M3) | Features | Board Lock, Grounding Indents |
| Detailed Description | 3 (Power) Position D-Sub, Combo Plug, Male Pins Connector | Current Rating | 30A |
| Contact Type | Power | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, Combo | Color | Black |
| Backset Spacing | 0.374" (9.50mm) |
