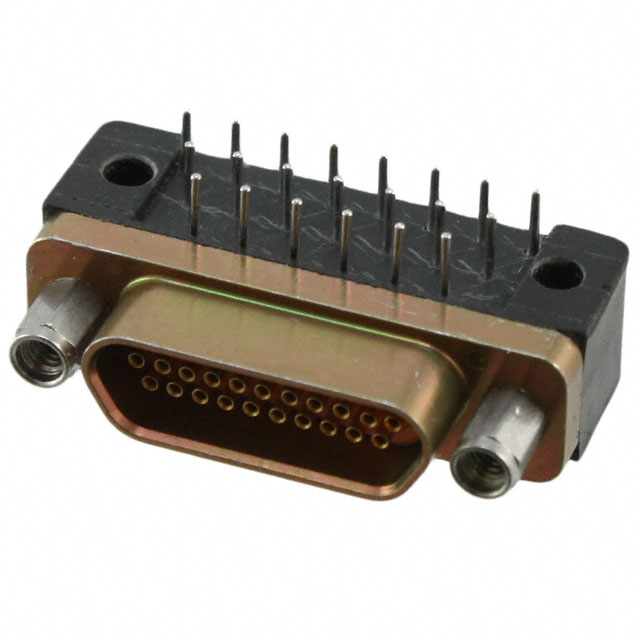

MDM-21SCBRP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDM-21SCBRP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDM-21SCBRP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDM-21SCBRP |
|---|---|
| Manufacturer | ITT Cannon, LLC |
| Description | CONN MICRO-D RCPT 21POS R/A SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $60.191 | $56.649 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDM-21SCBRP | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN MICRO-D RCPT 21POS R/A SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 665 pcs | Data sheet | Microminiature CatalogMDM-21SCBRPMDM-21SCBRP |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Voltage | - | Type Attributes | - |
| Termination | Solder | Stacking Direction | Signal |
| Shell Size - Insert (Convert From) | Aluminum, Yellow Chromate Cadmium Plated | Series | MIL-DTL-83513, Micro D Metal Shell (MDM) |
| RoHS Status | Bulk | Pitch - Connector | - |
| Other Names | 096515-0161 1003-1288 965150161 IMDM-21SCBRP IMDM-21SCBRP-ND MDM-21SCBRP-ND MDM21SCBRP-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 21 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 9 Weeks | Manufacturer Part Number | MDM-21SCBRP |
| Length - Threaded Portion Below Head | - | Features | Shielded |
| Expanded Description | 21 Position D-Type, Micro-D Receptacle, Female Sockets Connector, Panel Mount, Through Hole, Right Angle Solder | Description | CONN MICRO-D RCPT 21POS R/A SLDR |
| Current Rating (Per Contact) | Mating Side, Female Screwlock (2-56) | Current Rating | 3A |
| Contact Form | 0.050 Pitch x 0.100 Row to Row | Contact Finish Thickness | Gold |
| Connector Usage | D-Type, Micro-D | Connector Type | Receptacle, Female Sockets |
| Color | - | Cable Opening | Liquid Crystal Polymer (LCP) |
| Cable Diameter | - | Backset Spacing | - |
