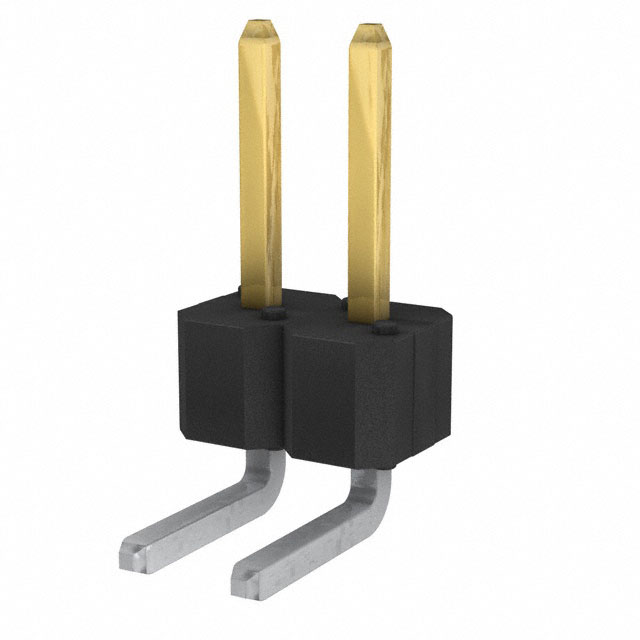

55101-G17-02
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 55101-G17-02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 55101-G17-02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 55101-G17-02 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | BERGSTIK 0.100" R/A TH 30 GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.028 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 55101-G17-02 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK 0.100" R/A TH 30 GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 869063 pcs | Data sheet | 55101 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 55101-G17-2 55101-G17-2-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | - |
| Insulation Height | 0.140" (3.56mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
