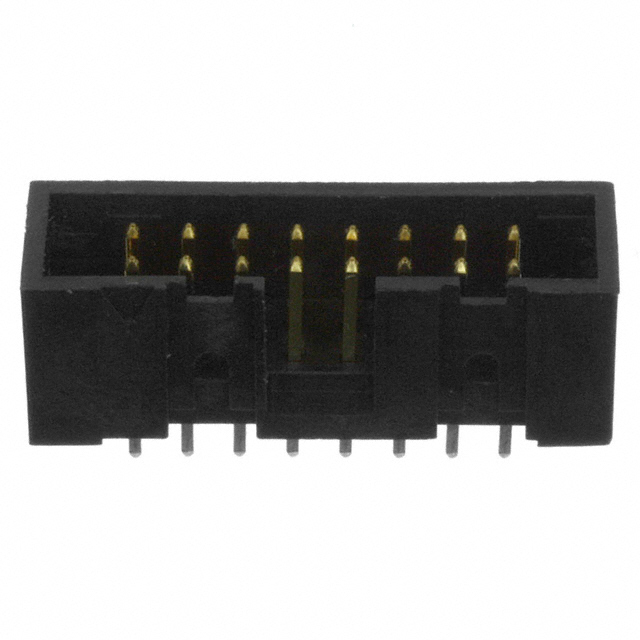

52601-S16-4LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52601-S16-4LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52601-S16-4LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52601-S16-4LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | LP.100"SHRD HDR .100" VERT 15GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.49 | $0.446 | $0.382 | $0.318 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.273 | $0.242 | $0.237 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52601-S16-4LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | LP.100"SHRD HDR .100" VERT 15GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82746 pcs | Data sheet | 52601 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 52601S164LF 609-3474 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.365" (9.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
