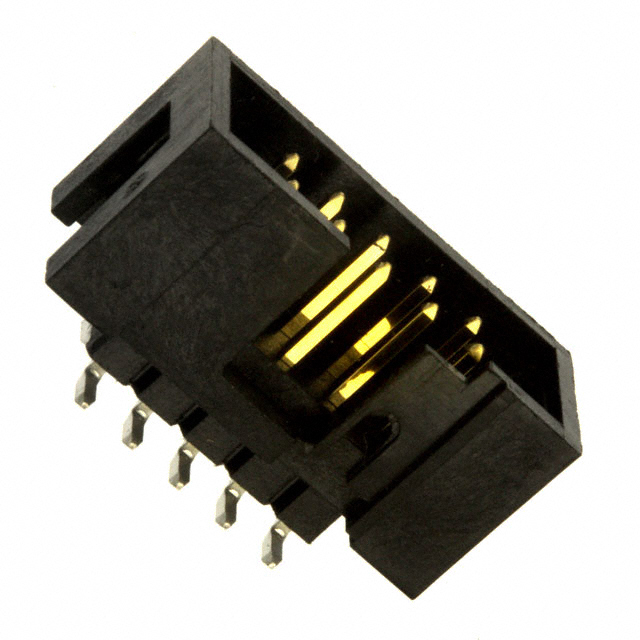

52601-S10-8LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52601-S10-8LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52601-S10-8LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52601-S10-8LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | LP.100"SHRD HDR .100" VERT 15GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 208 pcs | ||
|---|---|---|---|---|---|
| $0.958 | $0.87 | $0.746 | |||
| 624 pcs | 1040 pcs | 5200 pcs | |||
| $0.621 | $0.533 | $0.472 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52601-S10-8LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | LP.100"SHRD HDR .100" VERT 15GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72351 pcs | Data sheet | 52601 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 52601-S10-8LF-ND 52601S108LF 609-3593 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
