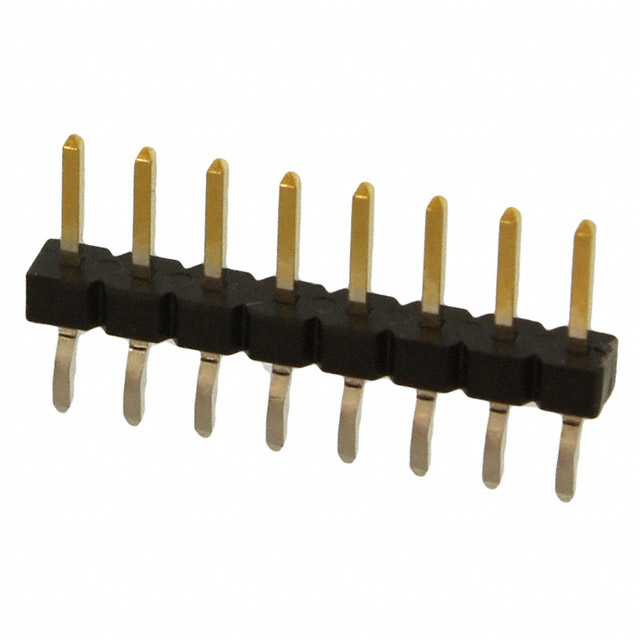

10112684-G03-08ULF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10112684-G03-08ULF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10112684-G03-08ULF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10112684-G03-08ULF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 8POS SGL HORIZ SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 36 pcs | 108 pcs | ||
|---|---|---|---|---|---|
| $0.844 | $0.718 | $0.656 | |||
| 504 pcs | 1008 pcs | 5004 pcs | |||
| $0.547 | $0.468 | $0.415 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10112684-G03-08ULF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 8POS SGL HORIZ SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77476 pcs | Data sheet | Minitek® 2.0MM SMT BrochureMinitek® II Series Spec10112684-zzz-yyyLF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Minitek® |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 10112684G0308ULF 609-4382 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm) | Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
