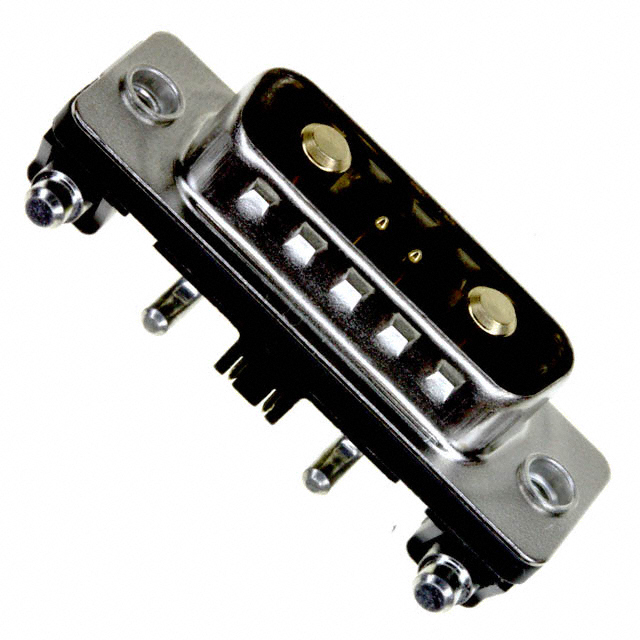

10070158-00419XLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10070158-00419XLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10070158-00419XLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10070158-00419XLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN D-SUB PLUG 4POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.905 | $7.135 | $6.836 | $6.409 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.195 | $5.853 | $5.682 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10070158-00419XLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB PLUG 4POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6339 pcs | Data sheet | 10070158-004 Series Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 48V | Termination | Solder Paste |
| Shell Size, Connector Layout | 2 (DA, A) - 4W2 | Shell Material, Finish | Steel, Nickel Plated |
| Series | MicroTCA™ | Packaging | Bulk |
| Other Names | 1007015800419XLF 609-3152 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 4 (2 + 2 Power) |
| Mounting Type | Board Cutout, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Guide, Grounding Indents, Mounting Brackets | Detailed Description | 4 (2 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 0.375A, 24A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | - | Backset Spacing | 0.201" (5.10mm) |
