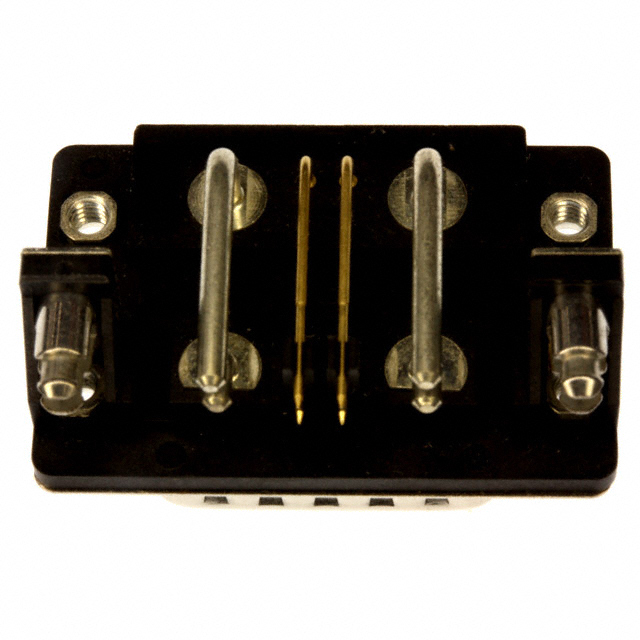

10070158-00119XLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10070158-00119XLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10070158-00119XLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10070158-00119XLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN DSUB PLUG 4 X 2POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 192 pcs | ||||
|---|---|---|---|---|---|
| $9.433 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10070158-00119XLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN DSUB PLUG 4 X 2POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4152 pcs | Data sheet | 10070158-001 Series Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 48V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 4W2; 2 (DA, A) - 4W2 | Shell Material, Finish | Steel, Nickel Plated |
| Series | MicroTCA™ | Packaging | Bulk |
| Other Names | 609-3153 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1,1 | Number of Positions | 4 (2 + 2 Power) x 2 |
| Mounting Type | Board Cutout, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 4 (2 + 2 Power) x 2 Position D-Sub, Combo - Stacked Plug, Male Pins Connector |
| Current Rating | 0.375A, 24A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo - Stacked |
| Color | - | Backset Spacing | 0.201" (5.10mm) |
