AON7436

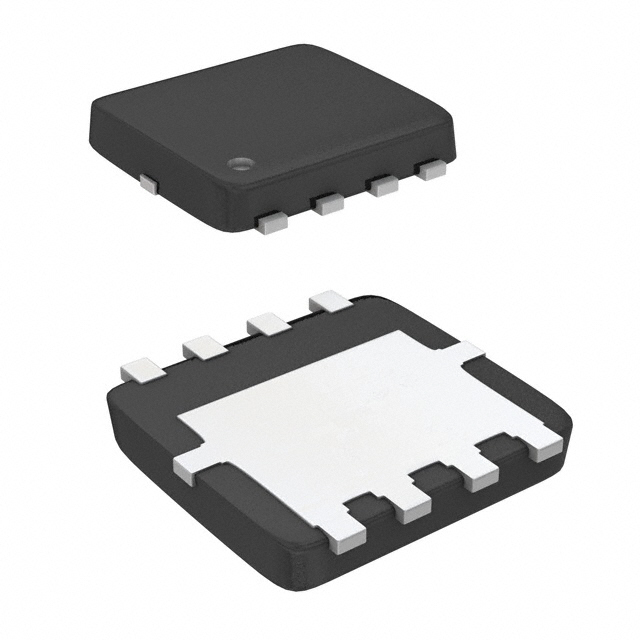

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AON7436 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AON7436 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AON7436 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET N-CH 20V 9A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | AON7436 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET N-CH 20V 9A 8DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5591 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-DFN (3x3) | Series | - |
| Rds On (Max) @ Id, Vgs | 19 mOhm @ 9A, 10V | Power Dissipation (Max) | 3.1W (Ta), 16.7W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerSMD, Flat Leads |
| Other Names | 785-1311-2 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 630pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 10V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 9A (Ta), 23A (Tc) 3.1W (Ta), 16.7W (Tc) Surface Mount 8-DFN (3x3) |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 23A (Tc) |
