AON7428

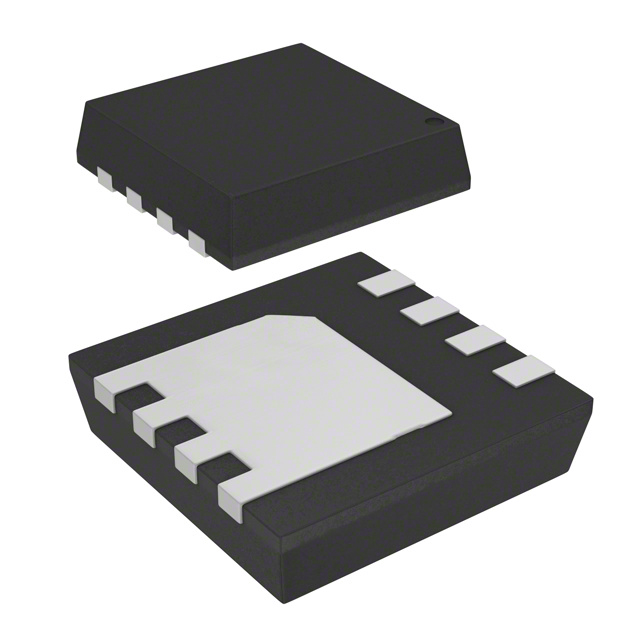

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AON7428 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AON7428 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AON7428 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET N-CH 30V 50A 3X3DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.177 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AON7428 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET N-CH 30V 50A 3X3DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118656 pcs | Data sheet | AON7428 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) | Series | - |
| Rds On (Max) @ Id, Vgs | 2.8 mOhm @ 20A, 10V | Power Dissipation (Max) | 6.2W (Ta), 83W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | 785-1233-2 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3120pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 60nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 34A (Ta), 50A (Tc) 6.2W (Ta), 83W (Tc) Surface Mount 8-DFN-EP (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 34A (Ta), 50A (Tc) |
