AON2400

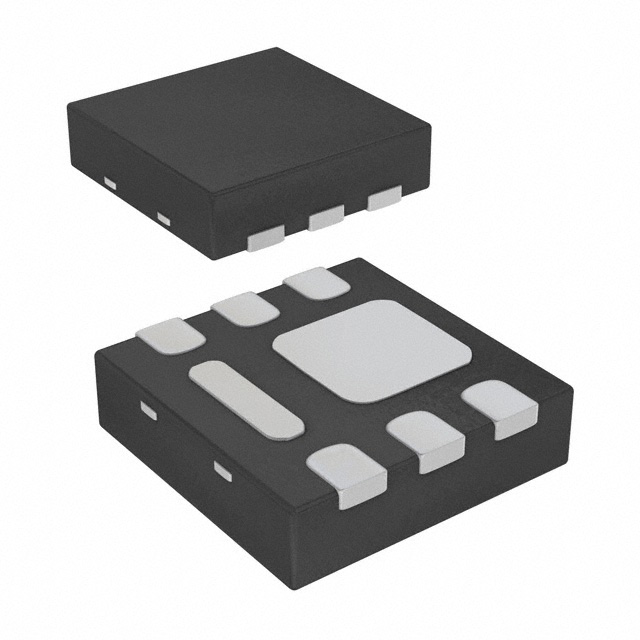

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AON2400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AON2400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AON2400 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET N CH 8V 8A DFN 2X2B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | AON2400 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET N CH 8V 8A DFN 2X2B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5853 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 750mV @ 250µA |
| Vgs (Max) | ±5V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-DFN-EP (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | 11 mOhm @ 8A, 2.5V | Power Dissipation (Max) | 2.8W (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 6-UDFN Exposed Pad |
| Other Names | 785-1422-1 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1645pF @ 4V |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 2.5V |
| Drain to Source Voltage (Vdss) | 8V | Detailed Description | N-Channel 8V 8A (Ta) 2.8W (Ta) Surface Mount 6-DFN-EP (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
