AOC2413

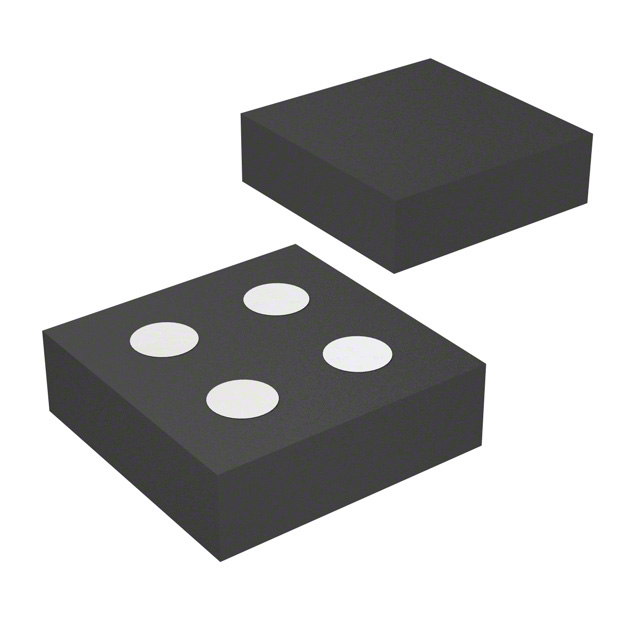

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AOC2413 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AOC2413 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AOC2413 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET P-CH 8V 3.5A 4WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AOC2413 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET P-CH 8V 3.5A 4WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5710 pcs | Data sheet | DFN1.57x1.57-4L Pkg DrawingAOC2413 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 650mV @ 250µA |
| Vgs (Max) | ±5V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 4-AlphaDFN (1.57x1.57) | Series | - |
| Rds On (Max) @ Id, Vgs | 28 mOhm @ 1.5A, 2.5V | Power Dissipation (Max) | 550mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, No Lead |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1935pF @ 4V | Gate Charge (Qg) (Max) @ Vgs | 27nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 2.5V | Drain to Source Voltage (Vdss) | 8V |
| Detailed Description | P-Channel 8V 3.5A (Ta) 550mW (Ta) Surface Mount 4-AlphaDFN (1.57x1.57) | Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
