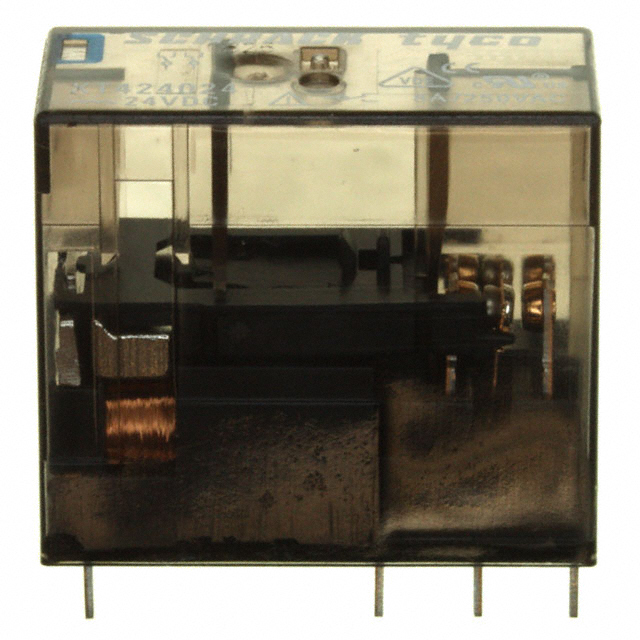

XT424024
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XT424024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XT424024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XT424024 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 8A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | ||
|---|---|---|---|---|---|
| $2.034 | $1.909 | $1.697 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.612 | $1.527 | $1.41 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XT424024 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 8A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25006 pcs | Data sheet | XT Product BrochureXT Series |
| Category | Relays | Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | Plug In |
| Switching Voltage | 400VAC - Max | Series | XT, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1887200-3 PB1195 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 9ms |
| Mounting Type | Socketable | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class F |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable | Contact Rating (Current) | 8A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 1.44 kOhms | Coil Power | 400 mW |
| Coil Current | 16.7mA |
