RZ03-1C4-D024
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RZ03-1C4-D024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RZ03-1C4-D024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RZ03-1C4-D024 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 16A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.903 | $0.848 | $0.754 | $0.716 | $0.678 | |
| 260 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.603 | $0.565 | $0.528 | $0.509 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RZ03-1C4-D024 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 16A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65011 pcs | Data sheet | RZ Power PCB Relay |
| Category | Relays | Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | RZ, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 2-1415899-3 PB1278 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 8ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F | Detailed Description | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole |
| Contact Rating (Current) | 16A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 1.44 kOhms |
| Coil Power | 400 mW | Coil Current | 16.7mA |
- Related products
- Related news
Related products
- Part#:

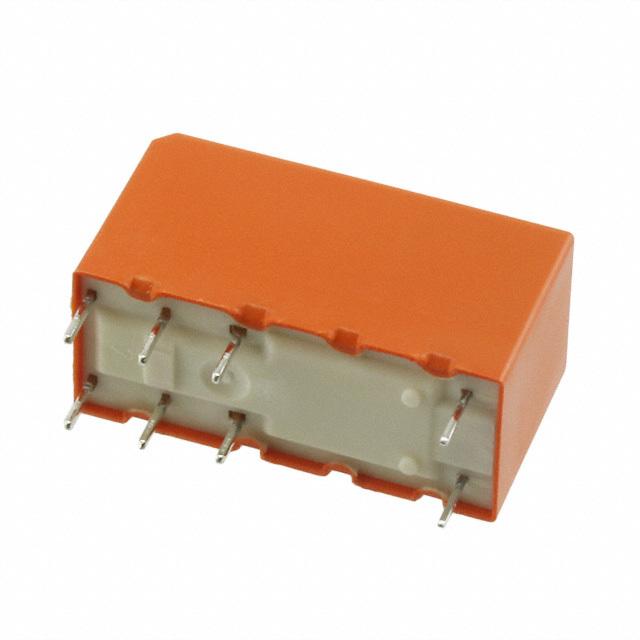

RZ03-1A3-D005 - Manufacturers:
