RZ01-1A4-D009

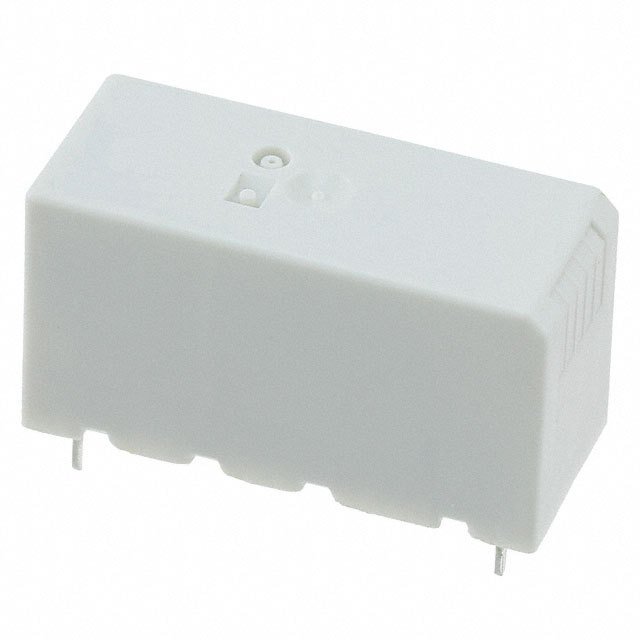

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RZ01-1A4-D009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RZ01-1A4-D009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RZ01-1A4-D009 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPST 12A 9V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.871 | $0.816 | $0.725 | $0.689 | $0.652 | |
| 260 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.58 | $0.544 | $0.507 | $0.489 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RZ01-1A4-D009 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 12A 9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70946 pcs | Data sheet | RZ Power PCB Relay |
| Category | Relays | Turn On Voltage (Max) | 6.3 VDC |
| Turn Off Voltage (Min) | 0.9 VDC | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | RZ, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1415899-3 PB1264 RZ011A4D009 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 8ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole |
| Contact Rating (Current) | 12A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 9VDC |
| Coil Type | Non Latching | Coil Resistance | 200 Ohms |
| Coil Power | 400 mW | Coil Current | 44.4mA |
