RT314615

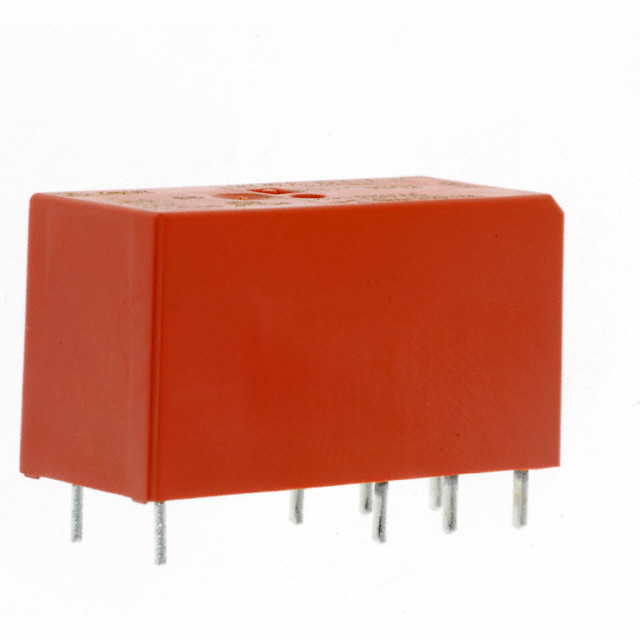

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RT314615 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RT314615 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RT314615 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 16A 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $2.207 | $2.071 | $1.84 | $1.748 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $1.656 | $1.472 | $1.38 | $1.288 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RT314615 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 16A 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29925 pcs | Data sheet | RT1 Relay Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 86.3 VAC |
| Turn Off Voltage (Min) | 17.3 VAC | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | RT1, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1393240-6 PB961 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 8ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 34 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Flux Protection | Detailed Description | General Purpose Relay SPDT (1 Form C) 115VAC Coil Through Hole |
| Contact Rating (Current) | 16A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 115VAC |
| Coil Type | Non Latching | Coil Resistance | 8.1 kOhms |
| Coil Power | 0.8 VA |
