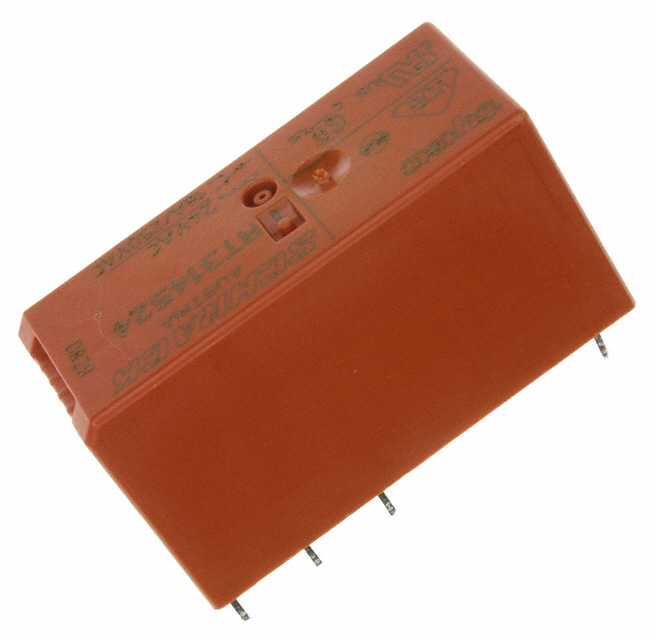

RT314524
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RT314524 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RT314524 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RT314524 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 16A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.378 | $1.292 | $1.149 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.091 | $1.034 | $0.955 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RT314524 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 16A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37549 pcs | Data sheet | RT1 Relay Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 18 VAC |
| Turn Off Voltage (Min) | 3.6 VAC | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | RT1, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1393240-4 PB1238 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 8ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 34 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Flux Protection | Detailed Description | General Purpose Relay SPDT (1 Form C) 24VAC Coil Through Hole |
| Contact Rating (Current) | 16A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 24VAC |
| Coil Type | Non Latching | Coil Resistance | 350 Ohms |
| Coil Power | 0.8 VA |
