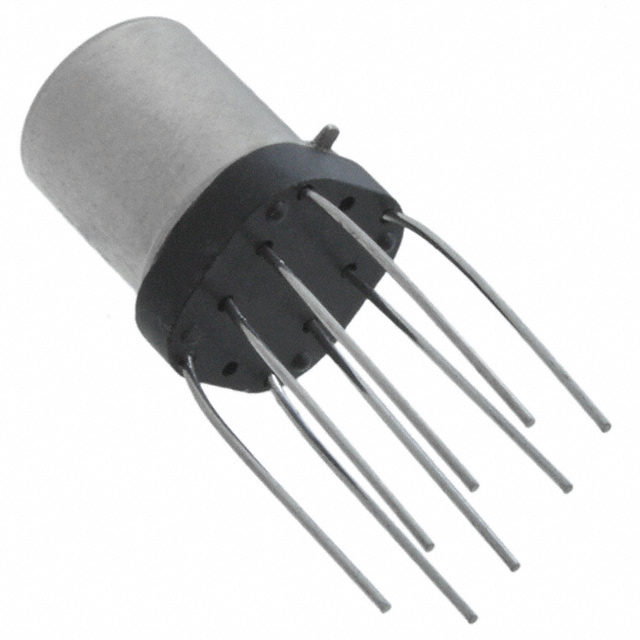

JMSCD-26XPS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMSCD-26XPS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMSCD-26XPS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMSCD-26XPS |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $44.083 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMSCD-26XPS | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 757 pcs | Data sheet | JMSCD-26XPS |
| Category | Relays | Turn On Voltage (Max) | 14 VDC |
| Turn Off Voltage (Min) | 1.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/16, MS, CII |
| Release Time | 7.5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1-1617128-5 1122-1088 1122-1088-MIL A101646 A101646-ND JMSCD26XPS M39016/16-044P |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 4ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 3.3 kOhms |
| Coil Power | 213 mW | Coil Current | 8.0mA |
