JMSCD-26XM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMSCD-26XM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMSCD-26XM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMSCD-26XM |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $39.543 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMSCD-26XM | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 899 pcs | Data sheet | JMSCD-26XM |
| Category | Relays | Turn On Voltage (Max) | 14 VDC |
| Turn Off Voltage (Min) | 1.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/16, MS, CII |
| Release Time | 7.5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1-1617128-2 1122-1086 1122-1086-MIL A101644 A101644-ND JMSCD26XM M39016/16-036M |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 4ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 3.3 kOhms |
| Coil Power | 213 mW | Coil Current | 8.0mA |
- Related products
- Related news
Related products
- Part#:
3-1393818-2 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY GEN PURPOSE DPDT 2A 125V - In Stock:
319
- Part#:
1393816-3 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY GEN PURP DPDT 200MA 30V - In Stock:
304
- Part#:
TX2SS-48V-Z - Manufacturers:
Panasonic - Description:
RELAY TELECOM DPDT 2A 220V - In Stock:
26649
- Part#:
JMSCD-12XMS - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY GEN PURPOSE DPDT 1A 28V - In Stock:
842
- Part#:
2-1393762-2 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY GEN PURPOSE - In Stock:
164
- Part#:
JMSBCB87-3-X - Manufacturers:
Panduit - Description:
CLAMP BRACKET SCREW - In Stock:
8976
- Part#:
TXD2-2M-3V - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE DPDT 1A 110V - In Stock:
30877
- Part#:
1462039-4 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY TELECOM DPDT 2A 250V - In Stock:
49317
- Part#:
JMSCD-26XPS - Manufacturers:
Agastat Relays / TE Connectivity - Description:
RELAY GEN PURPOSE DPDT 1A 28V - In Stock:
757
- Part#:
JMSBCB87-1-X - Manufacturers:
Panduit - Description:
CLAMP BRACKET SCREW - In Stock:
11043
- Part#:

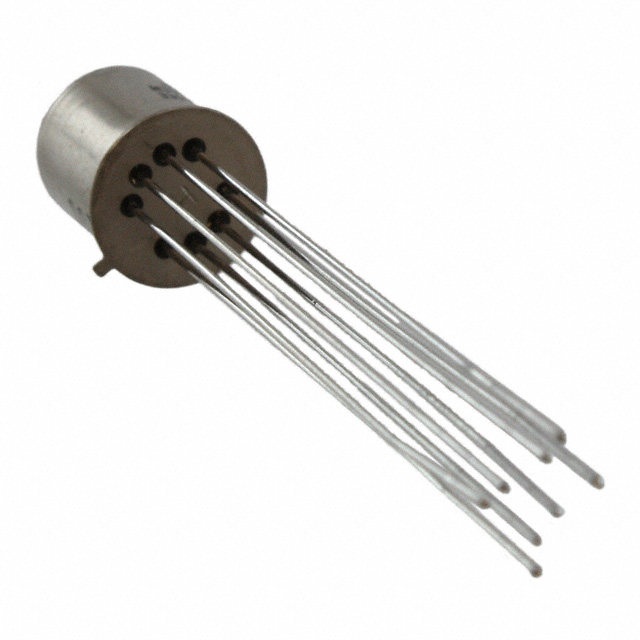

JMSWD-5XM - Manufacturers:
