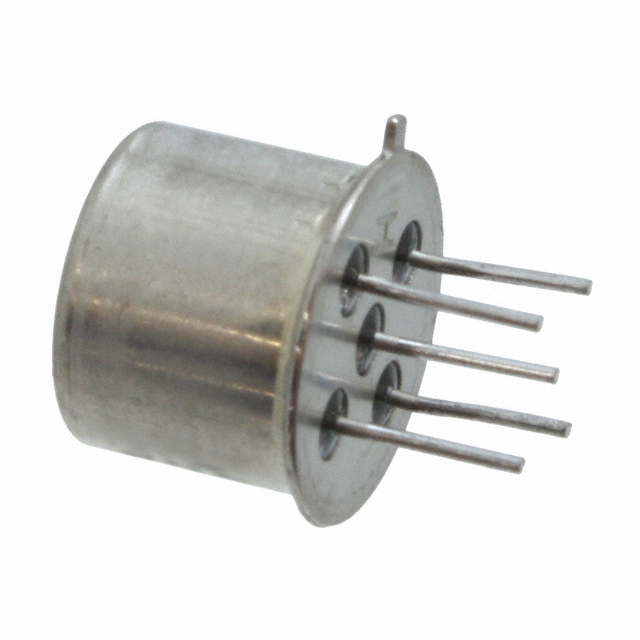

J1MAPD-26XM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy J1MAPD-26XM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy J1MAPD-26XM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | J1MAPD-26XM |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $38.266 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | J1MAPD-26XM | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 778 pcs | Data sheet | J1MAPD-26XM |
| Category | Relays | Turn On Voltage (Max) | 14.2 VDC |
| Turn Off Voltage (Min) | 1.37 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/23, 1MA, CII |
| Release Time | 4ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1054 1122-1054-MIL 4-1617118-7 A101611 A101611-ND J1MAPD26XM M39016/23-024M |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 2ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay SPDT (1 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 2 kOhms |
| Coil Power | 351 mW | Coil Current | 13.2mA |
