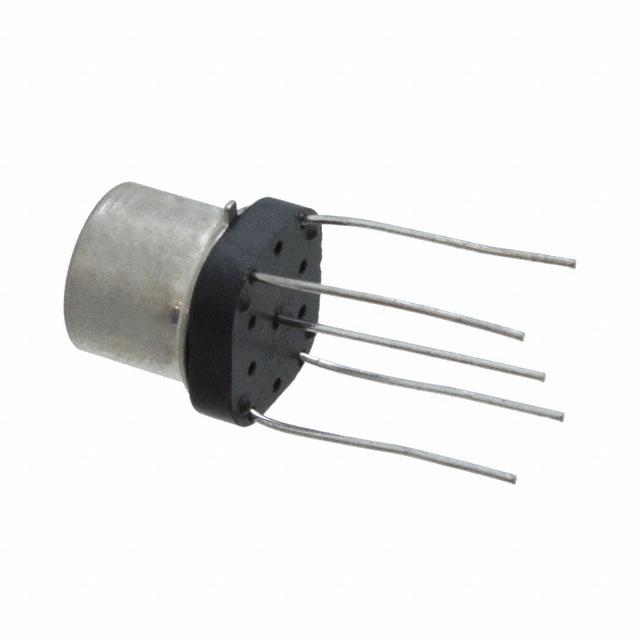

J1MAC-12XLS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy J1MAC-12XLS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy J1MAC-12XLS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | J1MAC-12XLS |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $33.637 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | J1MAC-12XLS | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 889 pcs | Data sheet | J1MAC-12XLS |
| Category | Relays | Turn On Voltage (Max) | 7 VDC |
| Turn Off Voltage (Min) | 0.63 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/7, 1MA, CII |
| Release Time | 2ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1048 1122-1048-MIL 1617118-1 A101605 A101605-ND J1MAC12XLS M39016/7-034L |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 2ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay SPDT (1 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 500 Ohms |
| Coil Power | 288 mW | Coil Current | 24.0mA |
