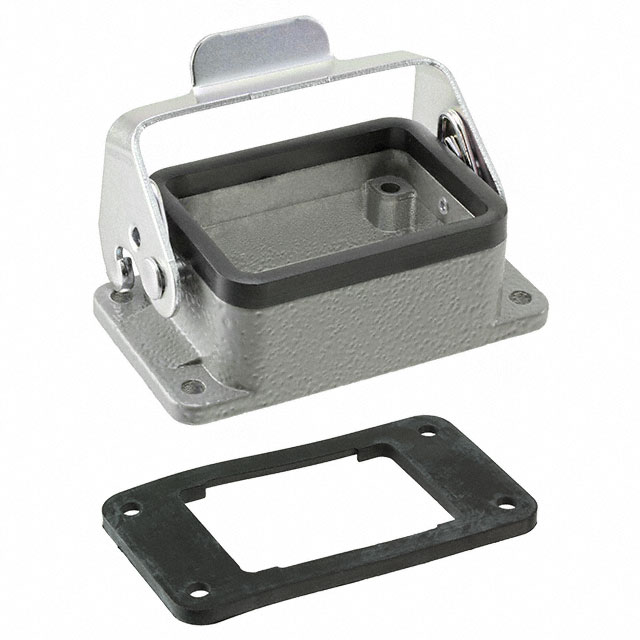

H6B-AG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H6B-AG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H6B-AG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H6B-AG |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BASE BOTTOM ENTRY 6B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.618 | $2.507 | $2.289 | $2.18 | $2.071 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.853 | $1.744 | $1.526 | $1.45 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H6B-AG | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BASE BOTTOM ENTRY 6B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23258 pcs | Data sheet | H6B-AG Drawing |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 3.228" L x 1.799" W x 1.173" H (82.00mm x 45.70mm x 29.80mm) |
| Size | 6B | Series | HB |
| Packaging | Bulk | Other Names | A123623 T1500063000-000 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Housing Finish | Powder Coated |
| Housing Color | Gray | Features | - |
| Connector Type | Base - Panel Mount |
