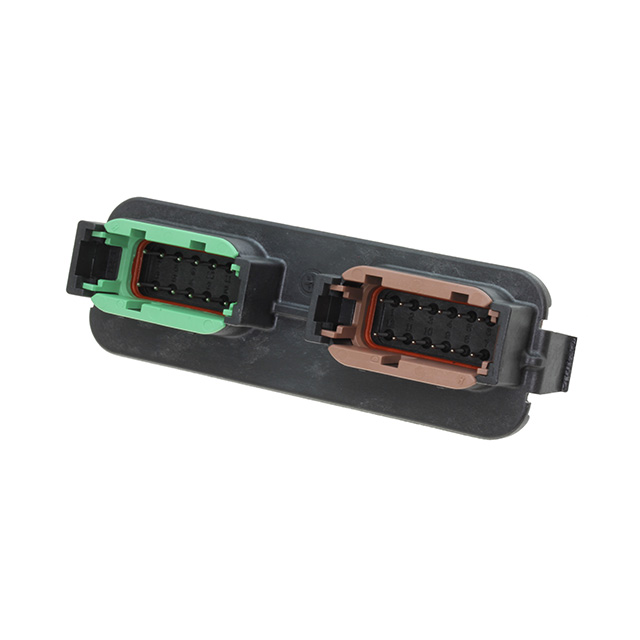

DTM1312PC12PDR008
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DTM1312PC12PDR008 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DTM1312PC12PDR008 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DTM1312PC12PDR008 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 24POS T/H R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.389 | $6.669 | $6.389 | $5.99 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.79 | $5.471 | $5.311 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DTM1312PC12PDR008 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 24POS T/H R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7412 pcs | Data sheet | DTM Series SpecDTM1312Px12PxR008 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DTM |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1662 DTM1312PC12PDR008-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 (12 + 12) | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 1.378" (35.00mm) |
| Insulation Color | Green | Ingress Protection | IP68/IP6K9K |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 24 (12 + 12) position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.112" (2.84mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Nickel | Connector Type | Header |
| Applications | Automotive |
