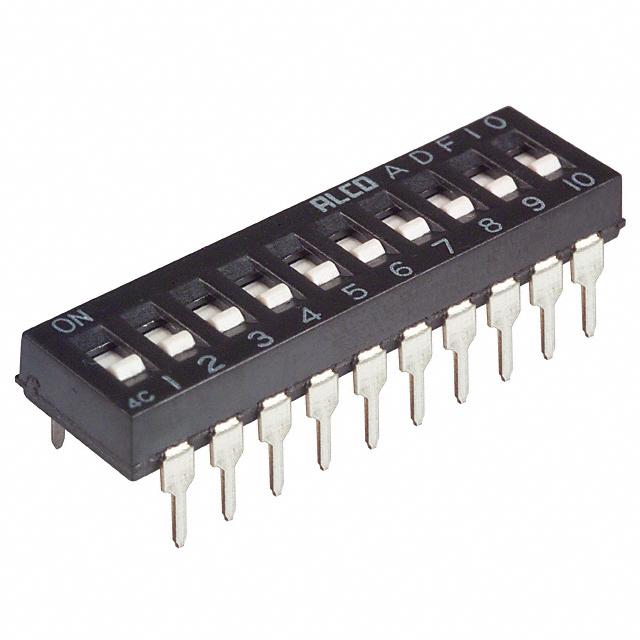

ADF10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADF10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADF10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADF10 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH SLIDE DIP SPST 100MA 24V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | ADF10 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 24V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4035 pcs | Data sheet | |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | PC Pin |
| Series | ADF | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | 1437587-1 450-1276 |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Length | 1.078" (27.38mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height Above Board | 0.189" (4.80mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 24VDC | Current Rating | 100mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
