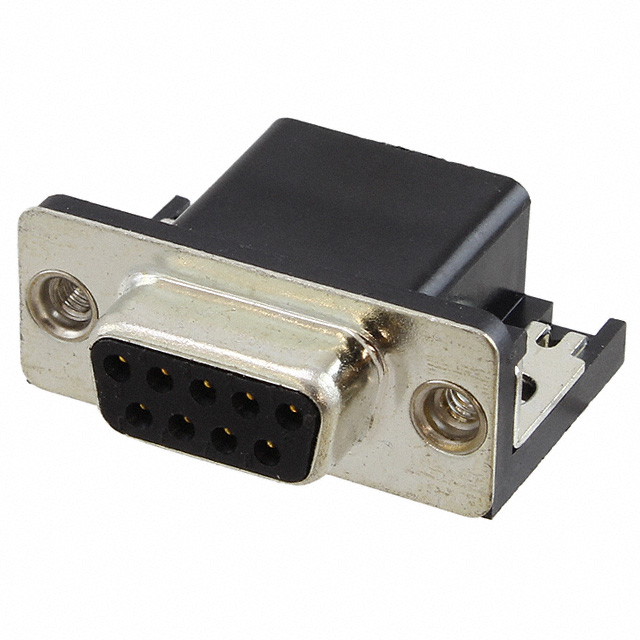

ADF09A-KG-TAXB5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADF09A-KG-TAXB5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADF09A-KG-TAXB5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADF09A-KG-TAXB5 |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | 135 pcs |
|---|---|---|---|---|---|
| $0.955 | $0.917 | $0.841 | $0.803 | $0.764 | |
| 270 pcs | 540 pcs | 1035 pcs | 2520 pcs | ||
| $0.669 | $0.65 | $0.554 | $0.516 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADF09A-KG-TAXB5 | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67727 pcs | Data sheet | ADFxxA-KG-TAxB5 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel |
| Series | - | Packaging | Tray |
| Other Names | ADF09A-KG-TAXB5-R ADF09A-KG-TAXB5-R-ND AE10925 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | - | Backset Spacing | 0.590" (14.99mm) |
