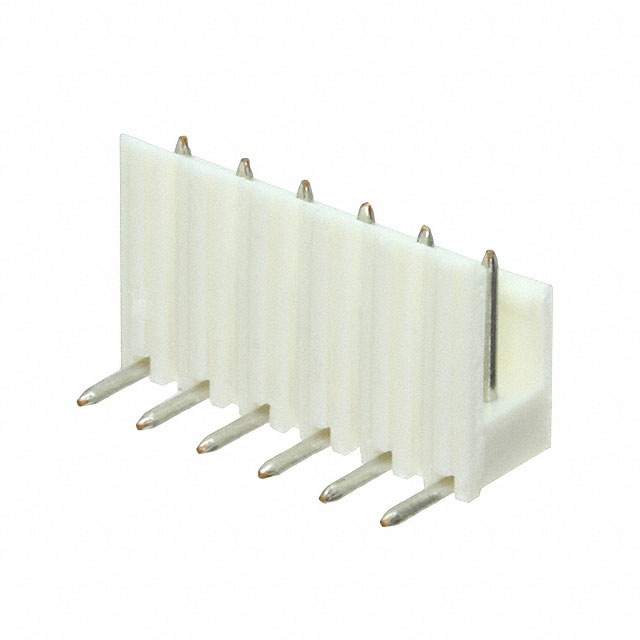

828549-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 828549-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 828549-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 828549-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 6P AMP-QUICK STLEI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.261 | $0.243 | $0.186 | $0.162 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.134 | $0.117 | $0.109 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 828549-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 6P AMP-QUICK STLEI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 175479 pcs | Data sheet | 828549 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Amp Quick-Pin |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 828549-6-ND A129106 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.205" (5.21mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | - |
| Connector Type | Header | Applications | - |
