828548-2

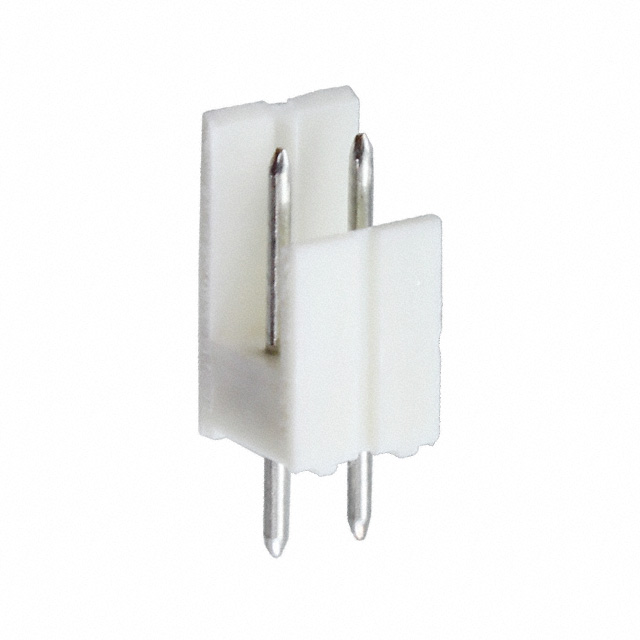

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 828548-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 828548-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 828548-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 2P AMP QUICK STLEI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.102 | $0.095 | $0.066 | $0.056 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.046 | $0.041 | $0.037 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 828548-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 2P AMP QUICK STLEI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 542068 pcs | Data sheet | 828548 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Shrouding | Shrouded - 2 Wall | Series | Amp Quick-Pin |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 828548-2-ND A129102 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.346" (8.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.114" (2.90mm) |
| Contact Length - Mating | 0.205" (5.21mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
