8134-HC-6P3

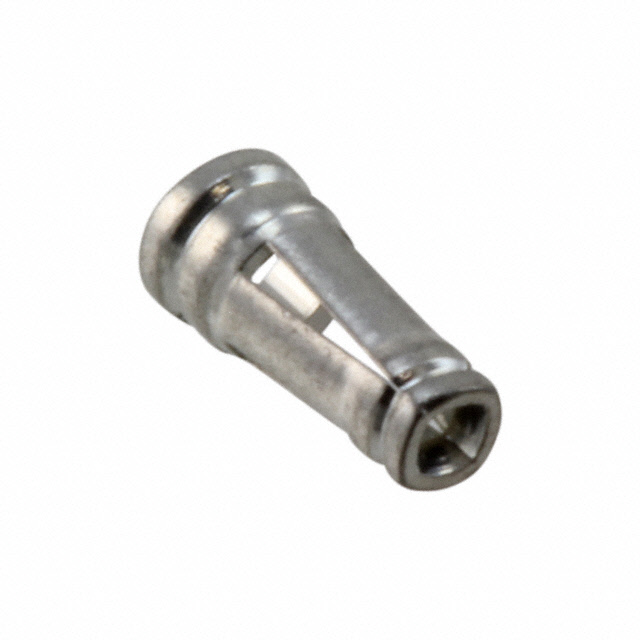

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8134-HC-6P3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8134-HC-6P3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8134-HC-6P3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .020-.030 PRESSFIT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.153 | $0.145 | $0.124 | $0.105 | $0.101 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.091 | $0.087 | $0.072 | $0.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8134-HC-6P3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .020-.030 PRESSFIT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 347590 pcs | Data sheet | 8134-HC, 1437zzz Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | - | Series | HOLTITE |
| Pin Hole Diameter | 0.038" (0.97mm) | Packaging | Bulk |
| Other Names | 6-1437514-9 A109233 |
Operating Temperature | -55°C ~ 105°C |
| Mounting Hole Diameter | 0.063" (1.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 0.140" (3.56mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Force | - | Flange Diameter | 0.063" (1.60mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.020" ~ 0.030" (0.51mm ~ 0.76mm) No Tail Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | - |
| Contact Finish | Tin-Lead | Board Thickness | 0.030" (0.76mm) |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.020" ~ 0.030" (0.51mm ~ 0.76mm) |
