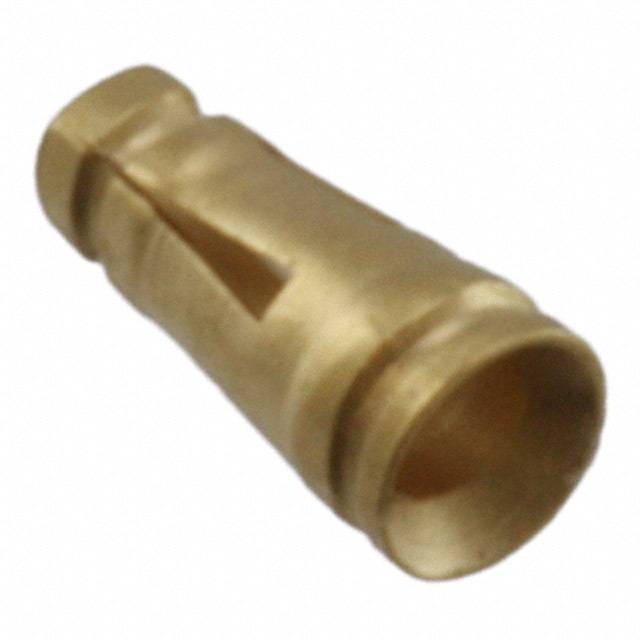

8134-HC-5P2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8134-HC-5P2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8134-HC-5P2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8134-HC-5P2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .016-.021 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.113 | $0.107 | $0.092 | $0.078 | $0.075 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.067 | $0.064 | $0.054 | $0.049 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8134-HC-5P2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .016-.021 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 437667 pcs | Data sheet | AUGAT HOLTITE Sockets Prod SpecAUGAT HOLTITE Sockets Appl Spec6-1437514-6 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | - | Series | HOLTITE |
| Pin Hole Diameter | 0.026" (0.66mm) | Packaging | Bulk |
| Other Names | 6-1437514-6 6-1437514-6-ND 614375146 A107431 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.041" (1.04mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Length - Overall | 0.094" (2.39mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | - | Features | - |
| Detailed Description | Pin Receptacle Connector 0.016" ~ 0.021" (0.41mm ~ 0.53mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 24.8µin (0.63µm) | Contact Finish | Gold |
| Board Thickness | 0.030" (0.76mm) | Accepts Square Pin Size | 0.011" x 0.018" (0.28mm x 0.46mm) |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) |
