8-2178711-4

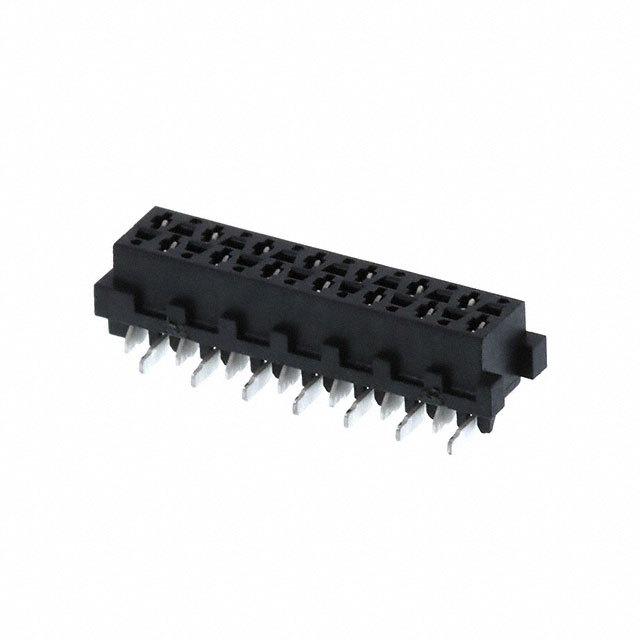

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-2178711-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-2178711-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-2178711-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 14P,FOB,SMD,P&P, MICRO-MATCH VAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1800 pcs | 3600 pcs | 5400 pcs | 9000 pcs | |
|---|---|---|---|---|---|
| $0.364 | $0.352 | $0.334 | $0.327 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-2178711-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 14P,FOB,SMD,P&P, MICRO-MATCH VAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57523 pcs | Data sheet | 2178711 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 8-2178711-4-ND A125135TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.209" (5.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle Connector Surface Mount |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
