8-2178711-2

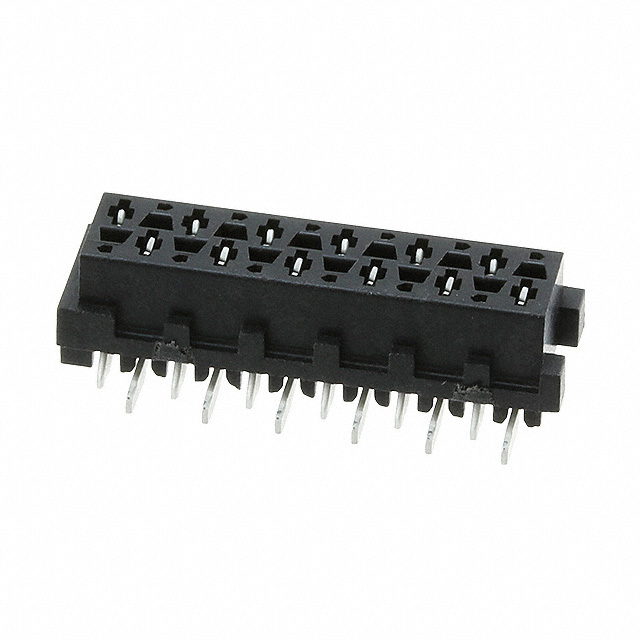

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-2178711-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-2178711-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-2178711-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN 12P FOB P&P VERT RCPT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.663 | $0.602 | $0.516 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-2178711-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN 12P FOB P&P VERT RCPT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68662 pcs | Data sheet | 2178711 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Cut Tape (CT) |
| Other Names | A120934CT | Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.209" (5.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
