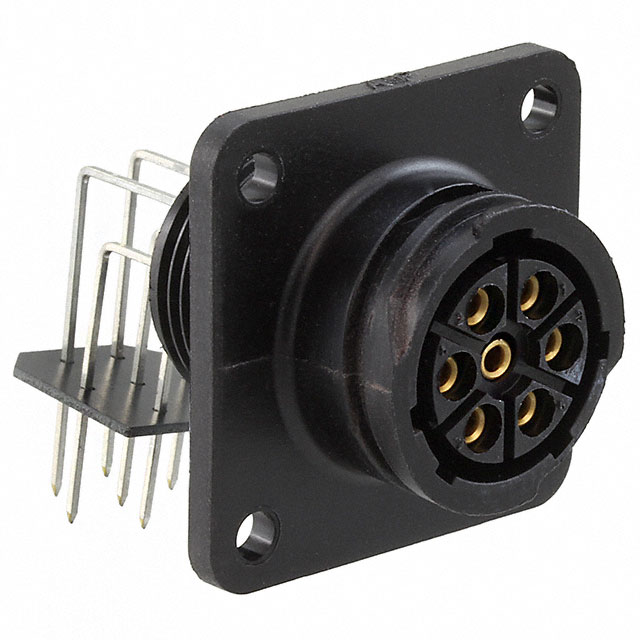

796403-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796403-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796403-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796403-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT MALE 4POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | 64 pcs | |
|---|---|---|---|---|---|
| $6.779 | $6.294 | $5.649 | $5.487 | ||
| 112 pcs | 256 pcs | 512 pcs | |||
| $4.842 | $4.519 | $4.422 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796403-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS GOLD SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 7109 pcs | Data sheet | 796403 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 11-4 |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | CPC Series 1 | Packaging | Tray |
| Other Names | 796403-1-ND A115683 |
Orientation | A |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 4 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Receptacle, Male Pins Solder Gold | Current Rating | 13A |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Cable Opening | - |
| Backshell Material, Plating | - |
