796409-1

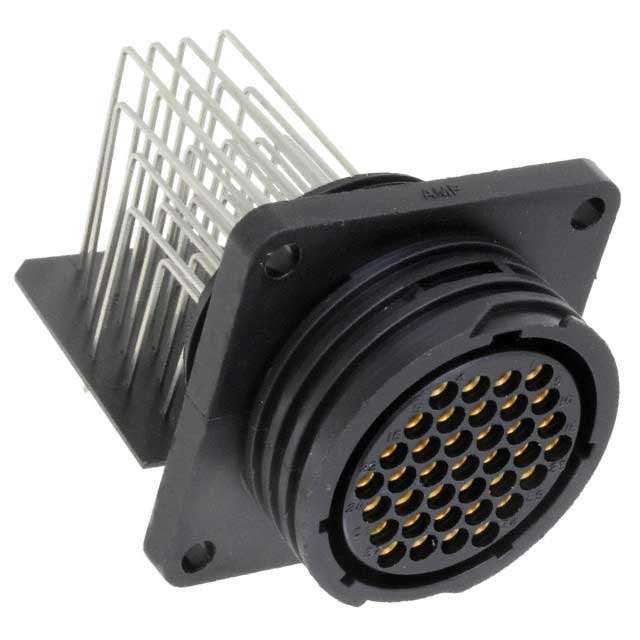

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796409-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796409-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796409-1 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN RCPT CPC 37POS SZ23 REV |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 80 pcs | ||||
|---|---|---|---|---|---|
| $21.773 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796409-1 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN RCPT CPC 37POS SZ23 REV | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1642 pcs | Data sheet | 796409 |
| Category | Connectors, Interconnects | Voltage - Rated | 600VAC/DC |
| Type Attributes | - | Termination | Solder |
| Shell Size - Insert (Convert From) | Thermoplastic | Shell Material, Finish | - |
| Series | CPC Series 1 | RoHS Status | Tray |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 37 |
| Mounting Type | Panel Mount, Flange; Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 21 Weeks | Manufacturer Part Number | 796409-1 |
| Large Diameter Supplied | 23-37 | Features | - |
| Expanded Description | 37 Position Circular Connector Receptacle, Female Sockets Solder Gold | Description | CONN RCPT CPC 37POS SZ23 REV |
| Current Rating | 13A | Current - Max/Contact | Threaded |
| Contact Material | A | Contact Finish Thickness | Gold |
| Connector Type | Receptacle, Female Sockets | Cable Diameter | 30µin (0.76µm) |
