| Part Number | 7-1565036-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

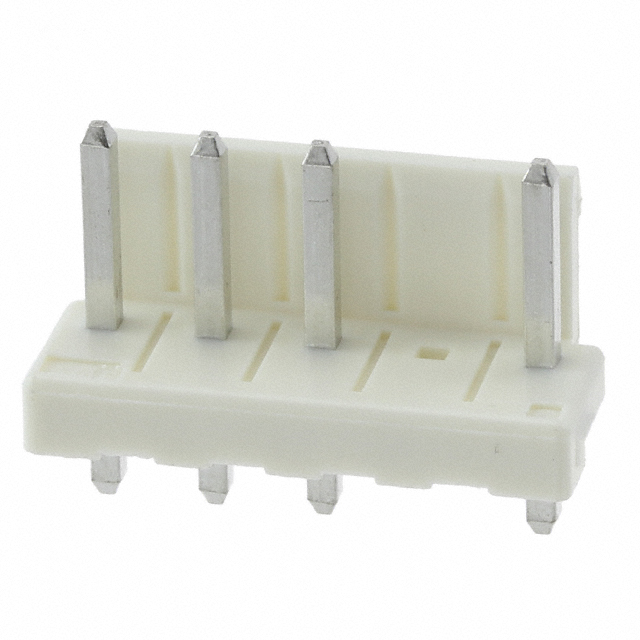

| Description | EP CONN.HDR ASSY 4/5POS-W/O NO.4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.094 | $0.087 | $0.06 | $0.051 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.042 | $0.037 | $0.034 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7-1565036-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EP CONN.HDR ASSY 4/5POS-W/O NO.4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 666158 pcs | Data sheet | 1123723 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.567" (14.40mm) |
| Other Names | A116736 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | 4 |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.362" (9.20mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 5 position 0.156" (3.96mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
