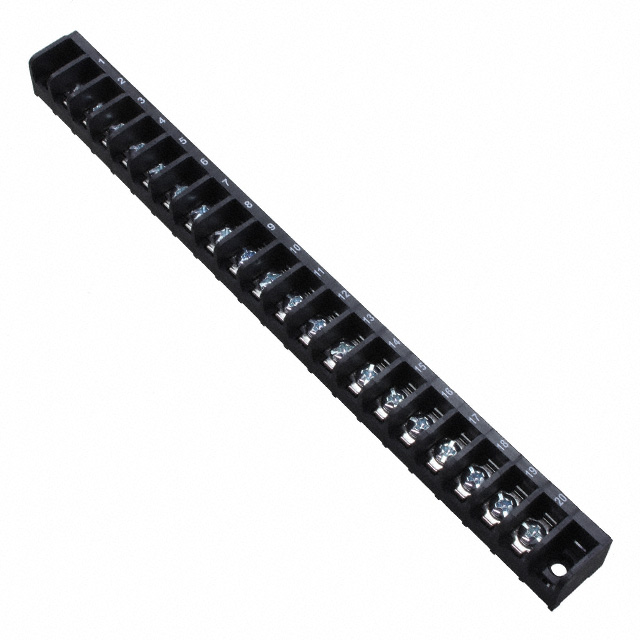

7-1546158-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7-1546158-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7-1546158-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7-1546158-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BARRIER STRP 20CIRC 0.375" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.087 | $5.621 | $5.442 | $5.084 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.013 | $4.655 | $4.565 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7-1546158-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BARRIER STRP 20CIRC 0.375" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7184 pcs | Data sheet | 6PCV-xx-009 Assembly |
| Category | Connectors, Interconnects | Wire Gauge | 12-22 AWG |
| Voltage Rating | 300V | Top Termination | Screws |
| Terminal Screw Material | Steel | Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Block Type | Barrier Block | Series | #6, Buchanan |
| Pitch | 0.375" (9.53mm) | Packaging | Bulk |
| Other Names | 6PCV-20-1361 7-1546158-8-ND A136581 |
Operating Temperature | 105°C |
| Number of Wire Entries | 20 | Number of Rows | 1 |
| Number of Circuits | 20 | Mounting Type | Chassis, Panel; Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flange, Positions Stamped |
| Detailed Description | 20 Circuit 0.375" (9.53mm) Barrier Block Connector, Screws | Current Rating | 25A |
| Color | Black | Bottom Termination | PC Pin |
| Barrier Type | 3 Wall (Tri) |
