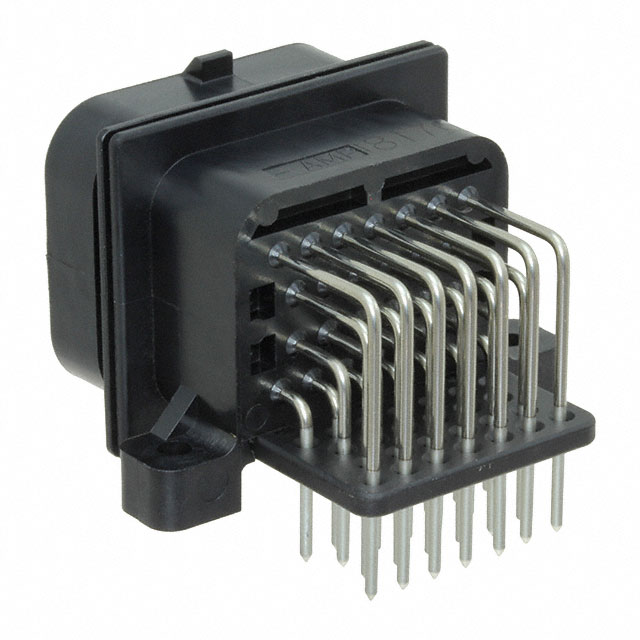

6473423-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6473423-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6473423-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6473423-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SUPER SEAL 26POS CAP ASSY H AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 112 pcs | 512 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $5.142 | $4.674 | $3.973 | $3.389 | $3.108 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 6473423-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SUPER SEAL 26POS CAP ASSY H AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11280 pcs | Data sheet | Amp Superseal Connectors Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Superseal |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 6473423-2-ND A128975 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 1.079" (27.40mm) | Insulation Color | - |
| Ingress Protection | - | Features | Mounting Flange, Sealed |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.118" (3.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive |
