6473418-1

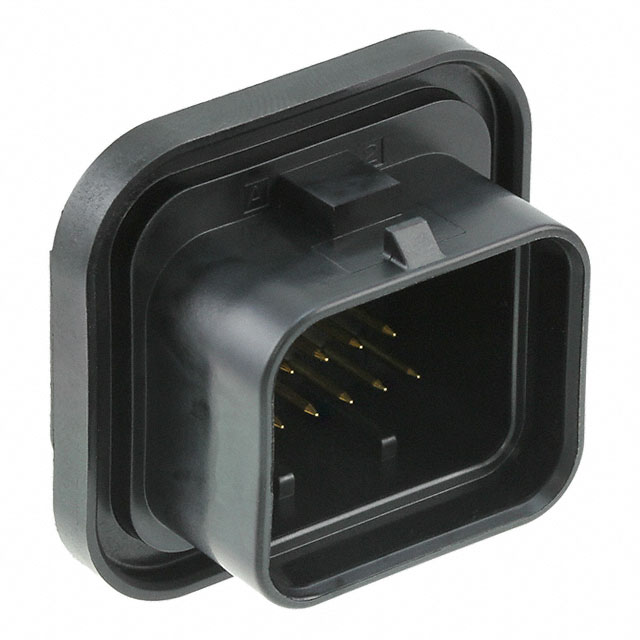

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6473418-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6473418-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6473418-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECPT 26POS VERT 3MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 102 pcs | 510 pcs | 1003 pcs |
|---|---|---|---|---|---|
| $5.18 | $4.707 | $4.001 | $3.413 | $3.13 | |
- Product parameter
Product parameter
| Part Number | 6473418-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECPT 26POS VERT 3MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9574 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Superseal |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 6473418-1-ND A121634 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.972" (24.70mm) | Insulation Color | - |
| Ingress Protection | - | Features | Sealed |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 26 position 0.118" (3.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive |
