5749769-1

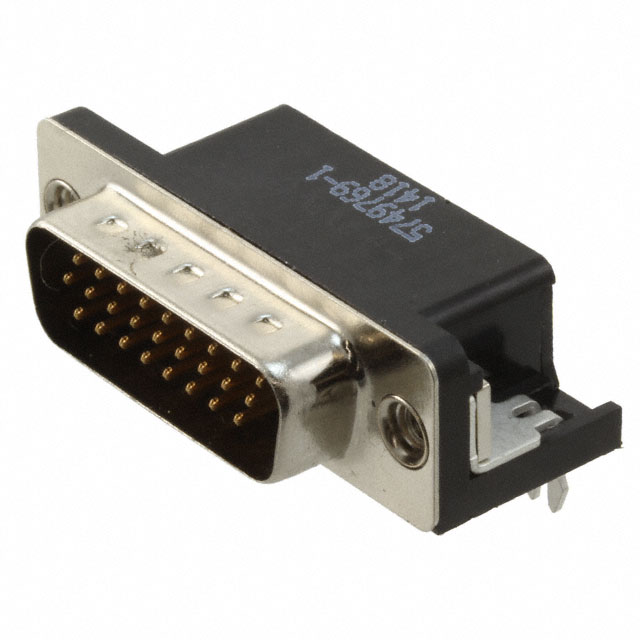

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5749769-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5749769-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5749769-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN DSUB HD PLUG 26POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $2.168 | $2.079 | $1.898 | $1.808 | ||
| 160 pcs | 320 pcs | 560 pcs | |||
| $1.717 | $1.537 | $1.446 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5749769-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 26POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20552 pcs | Data sheet | 5749769 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE HD-22 | Packaging | Tray |
| Other Names | 5749769-1-ND A115479 AMP-0-5749769-1 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 26 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Grounding Indents |
| Detailed Description | 26 Position D-Sub, High Density Plug, Male Pins Connector | Current Rating | 2A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | 0.350" (8.89mm) |
