5749768-1

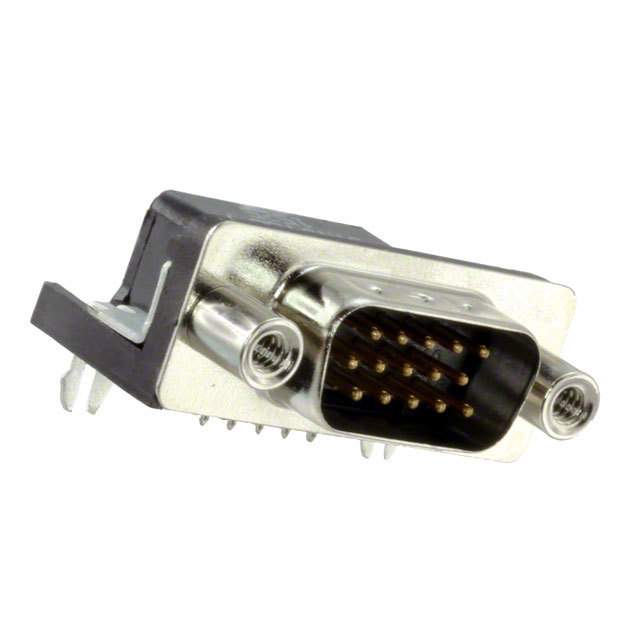

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5749768-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5749768-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5749768-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN DSUB HD PLUG 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.552 | $1.49 | $1.366 | $1.304 | $1.242 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.087 | $1.055 | $0.90 | $0.838 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5749768-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40793 pcs | Data sheet | 5749768 DrawingAMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE HD-22 | Packaging | Bulk |
| Other Names | 5749768-1-ND A121377 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.350" (8.89mm) |
