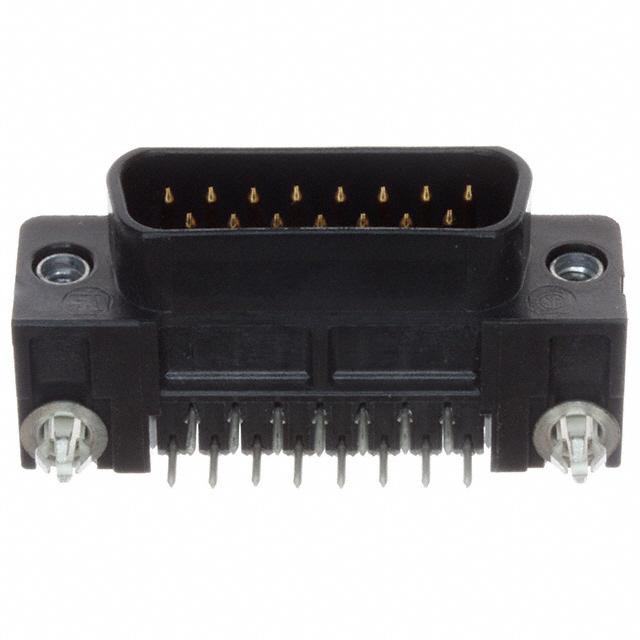

5748904-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5748904-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5748904-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5748904-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.503 | $4.094 | $3.991 | $3.684 | ||
| 104 pcs | 312 pcs | 520 pcs | 1040 pcs | ||
| $3.479 | $3.172 | $2.968 | $2.722 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5748904-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13172 pcs | Data sheet | 5748904-1AMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | - |
| Series | AMPLIMITE HD-20 | Packaging | Tray |
| Other Names | 57489041 A35155 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | - | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
