5748831-1

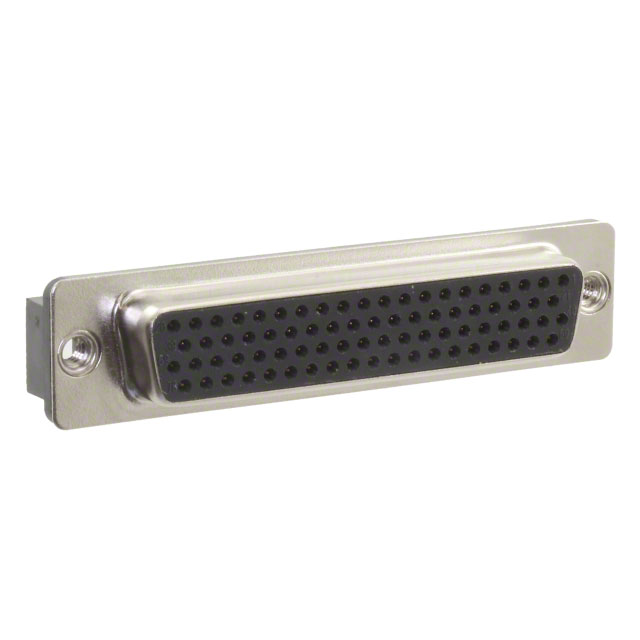

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5748831-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5748831-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5748831-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB HD RCPT 78P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5748831-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 78P VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4969 pcs | Data sheet | 5748831 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 5 (DD, D) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE HD-22 | Packaging | Tray |
| Other Names | 5748831-1-ND A121594 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions | 78 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | - |
| Detailed Description | 78 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 1.5A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
