5536295-1

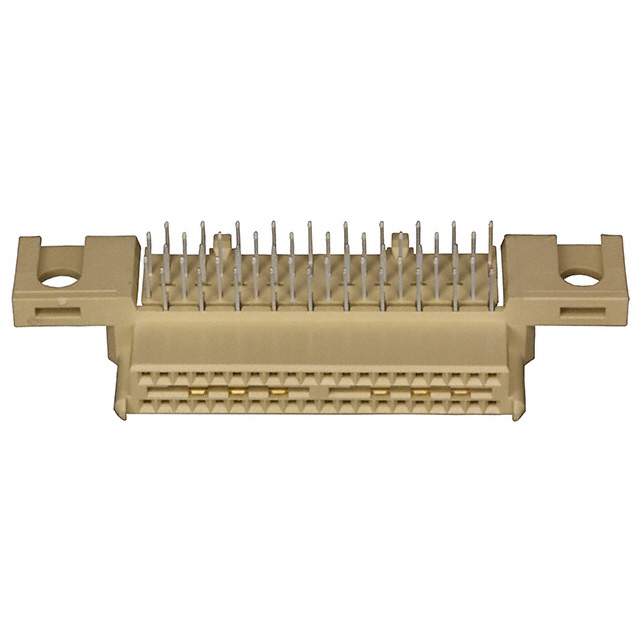

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5536295-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5536295-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5536295-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT RTANG 40POS GOLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 390 pcs | ||||
|---|---|---|---|---|---|
| $12.077 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5536295-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT RTANG 40POS GOLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2906 pcs | Data sheet | 5536295-1 |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Series | Micro-Strip | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tray |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.315" (8.00mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Ground Bus (Plane) | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.095" (2.41mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
