5536279-5

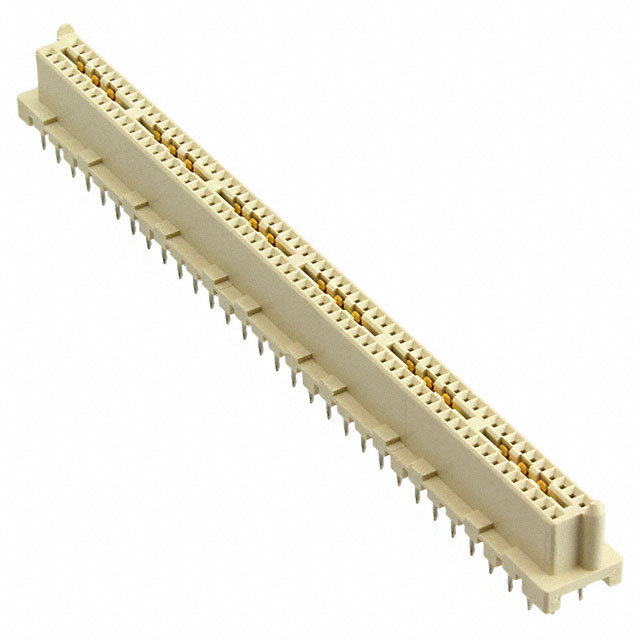

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5536279-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5536279-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5536279-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT VERT 120POS 30AU PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 70 pcs | ||||
|---|---|---|---|---|---|
| $8.909 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5536279-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT VERT 120POS 30AU PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4234 pcs | Data sheet | 5536279-1 |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Series | Micro-Strip | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tray |
| Other Names | 5536279-5-ND A115437 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 120 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 10.92mm, 17.78mm, 18.75mm | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.320" (8.13mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Ground Bus (Plane) |
| Fastening Type | Push-Pull | Detailed Description | 120 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.095" (2.41mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
