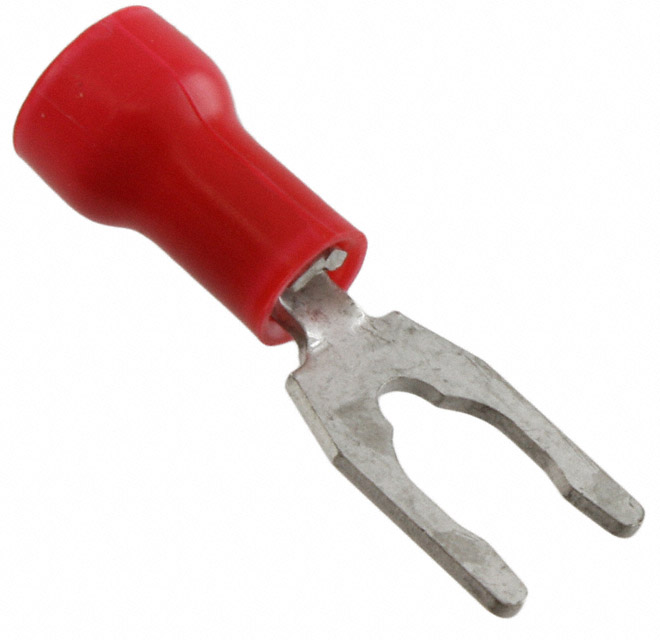

53242-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53242-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53242-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53242-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | 62500 pcs |
|---|---|---|---|---|---|
| $0.069 | $0.065 | $0.058 | $0.058 | $0.056 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 53242-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #10 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 374894 pcs | Data sheet | 53242 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.294" (7.47mm) | Tongue Inside Opening | 0.190" (4.83mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud | Series | Plasti-Grip |
| Packaging | Tape & Reel (TR) | Other Names | 53242-6-ND 532426 A100664TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | 0.465" (11.81mm) | Length - Ring Center to Termination | 0.281" (7.14mm) |
| Length - Overall | 0.969" (24.61mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.200" (3.81mm ~ 5.08mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 10 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Brass | Contact Finish | Tin |
| Color | Red |
